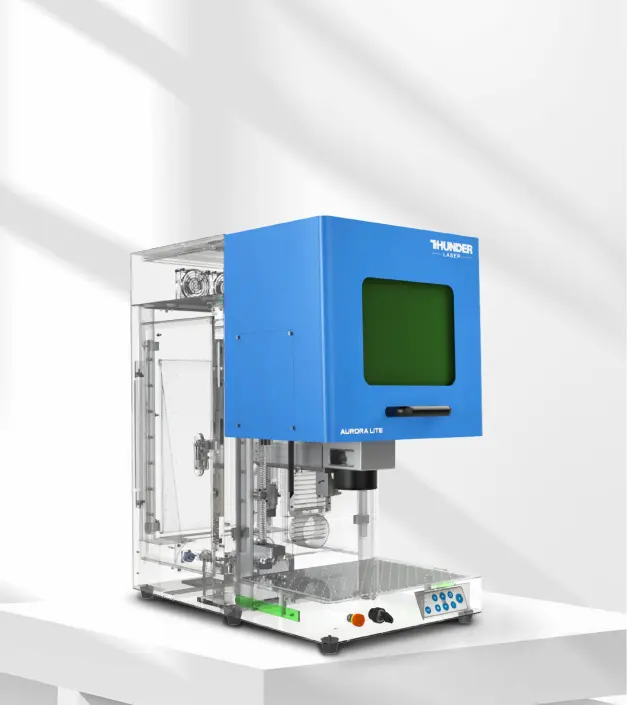

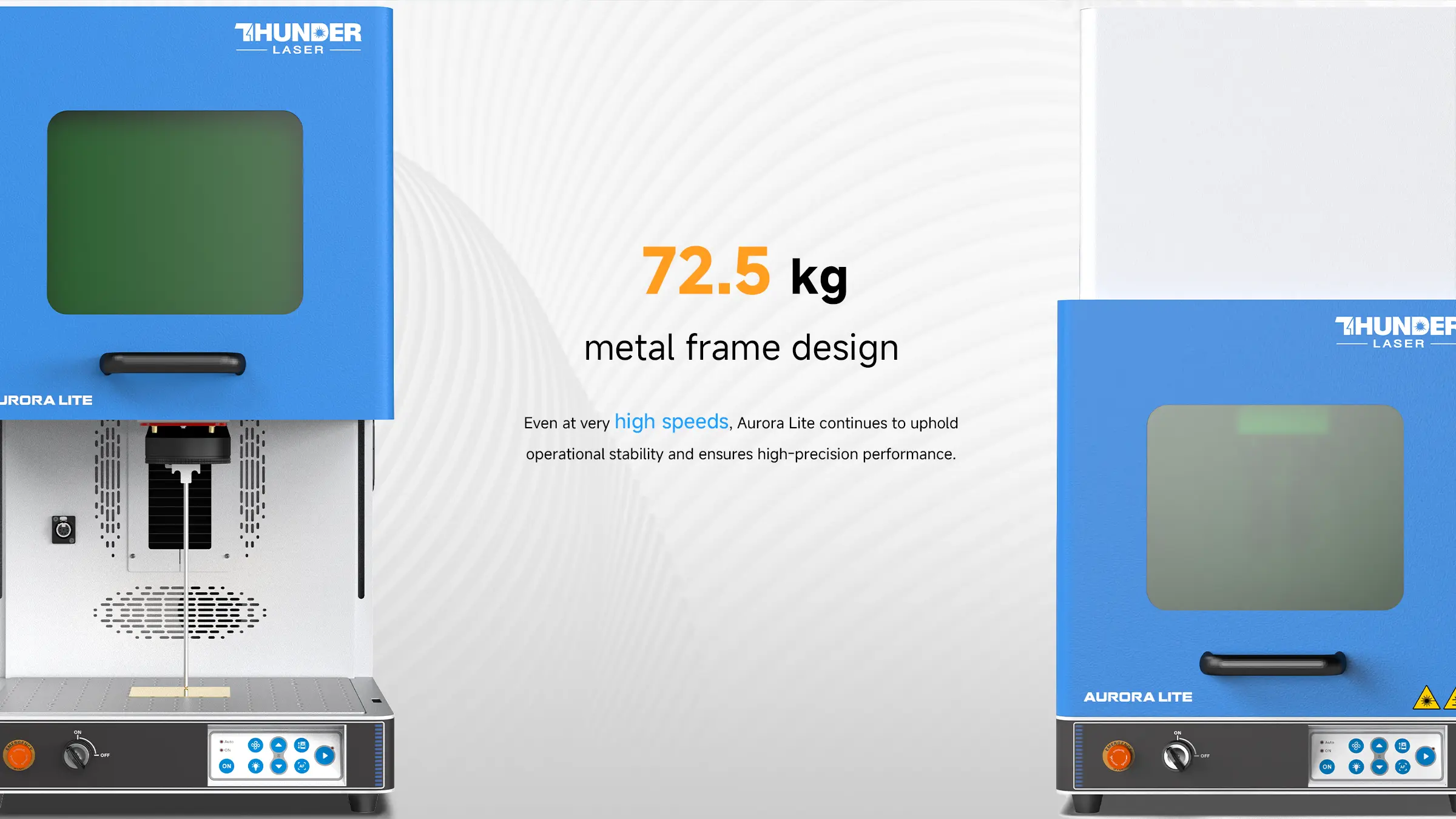

Thanks to the stability of the machine. The machine adopts a metal casing, and the heavy metal casing can keep the machine stable even under speed marking, ensuring high quality even at high speeds.

Machine Structure: The Aurora Lite boasts a galvo marking design coupled with a fiber laser source, offering precision and speed in marking applications. On the other hand, the Thunder Bolt features a gantry and belted structure powered by an RF CO2 laser source, catering to cutting and engraving tasks with versatility.

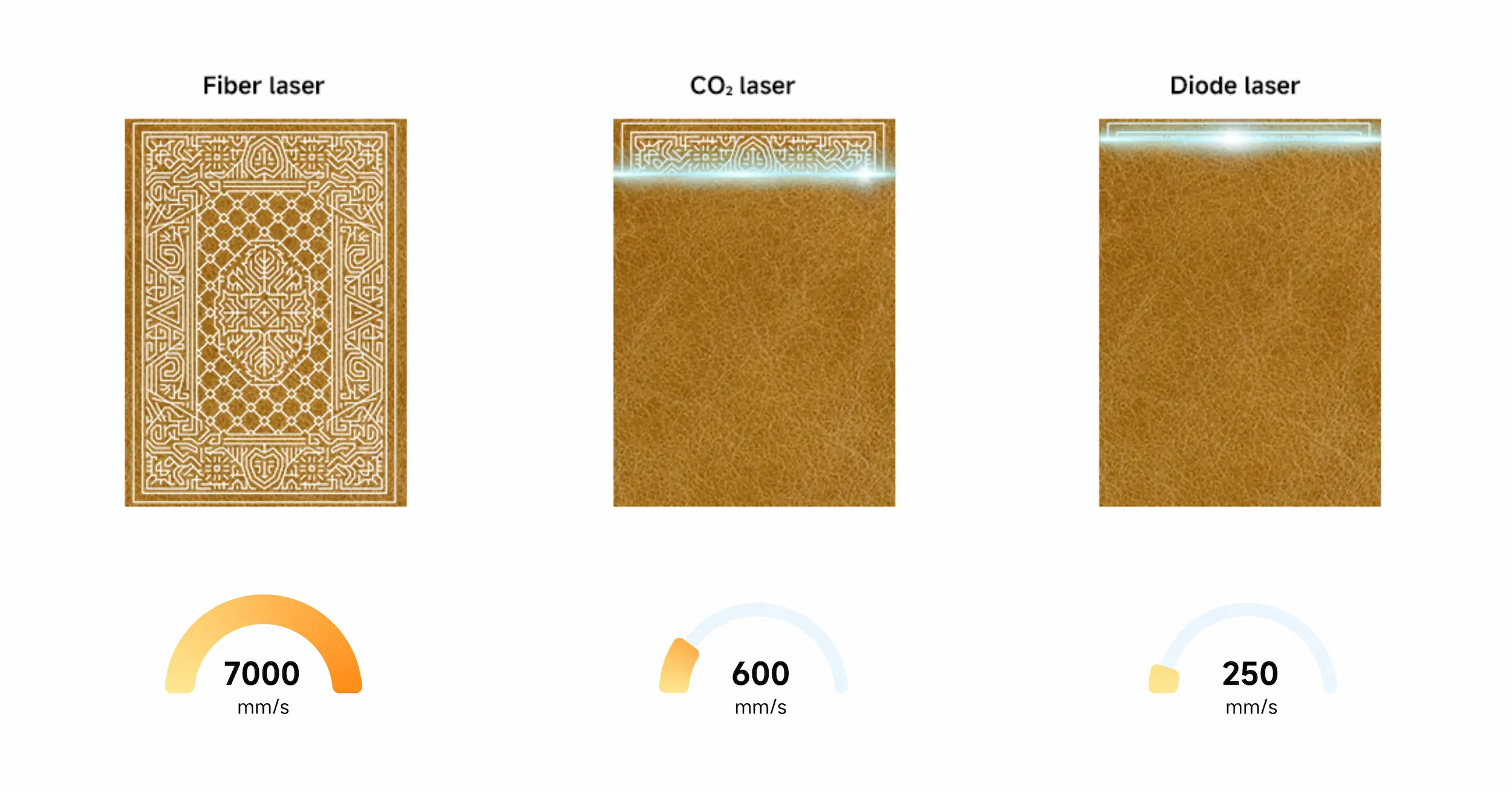

Performance: The distinction in machine structure translates to notable differences in performance metrics. With the Aurora Lite, enjoy an impressive maximum marking and scanning speed of 7000mm/s, ideal for swift and intricate marking tasks. Meanwhile, the Thunder Bolt showcases a maximum engraving speed of 1000mm/s, facilitating efficient cutting and engraving operations.
Material Compatibility: Thanks to their distinct laser sources, each machine excels in different material applications. The Thunder Bolt shines in engraving and cutting a wide array of non-metal materials, offering versatility for diverse projects.

Conversely, the Aurora Lite’s fiber laser source enables it to engrave bare metals with precision, a capability unmatched by the Thunder Bolt.

Synergistic Partnership: Together, the Aurora Lite and Thunder Bolt form a dynamic duo in any workshop setting. Their complementary functionalities enhance productivity and streamline workflows, empowering businesses to achieve greater efficiency and effectiveness in their operations.

Invest in these powerhouse machines to elevate your workshop capabilities and unlock new dimensions of productivity and creativity.

Yes, typically, field lenses with smaller marking areas can produce finer laser spots. Conversely, lenses with larger marking areas can engrave bigger patterns. However, it’s essential to note that larger work area lenses require longer focal distances. Moreover, due to the enclosed housing structure for safety purposes, the maximum work height is consequently reduced.

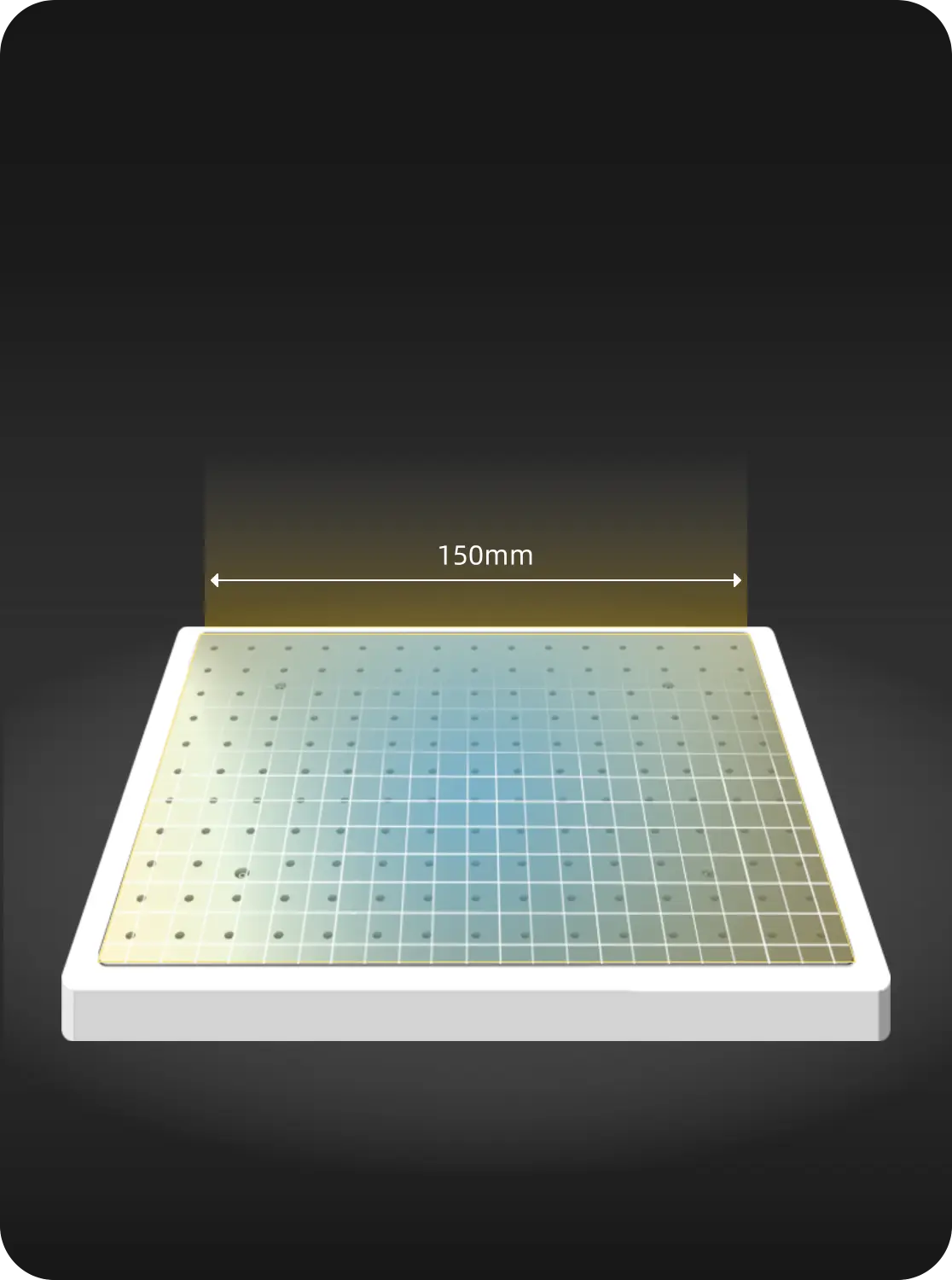

The standard lens for the Aurora Lite is the F-210, accommodating a maximum work area of 145 x 145 mm. As options, you can select the F160 (110 x 110 mm) or the F290 (200 x 200 mm) lenses as options to suit your specific requirements.

Comes with 50W fiber laser source, Aurora Lite is versatile and can process a wide range of materials, including but not limited to:

1.Metals: Stainless steel, mild steel, aluminum, brass, copper, titanium, etc.

2.Alloys: Various metal alloys including steel alloys, aluminum alloys, etc.

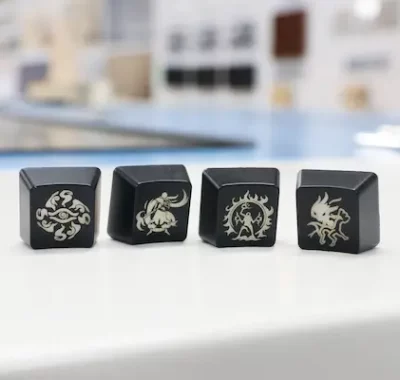

3.Plastics: ABS, PVC, acrylic, polycarbonate, polypropylene, etc.

4.Ceramics: Ceramic tiles, porcelain, etc.

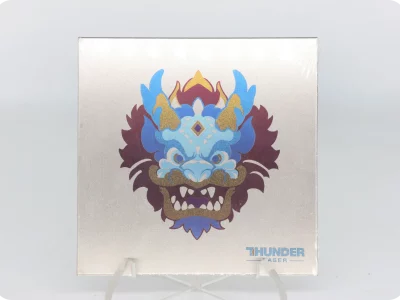

5.Coated Metals: Anodized aluminum, coated steel, etc.

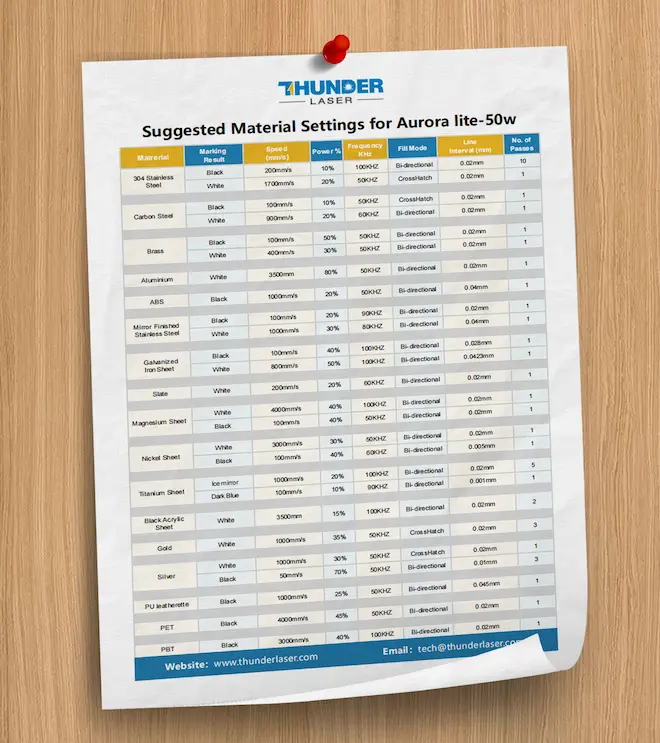

The depth to which a 50W fiber marking machine can engrave depends on several factors, including the material being engraved, the marking speed, and the specific settings of the machine (such as power and frequency). Generally, a 50W fiber laser can achieve engraving depths ranging from micrometers to a few millimeters, depending on the material and the desired level of detail. However, for deep engraving applications, higher-powered lasers or multiple passes may be necessary.

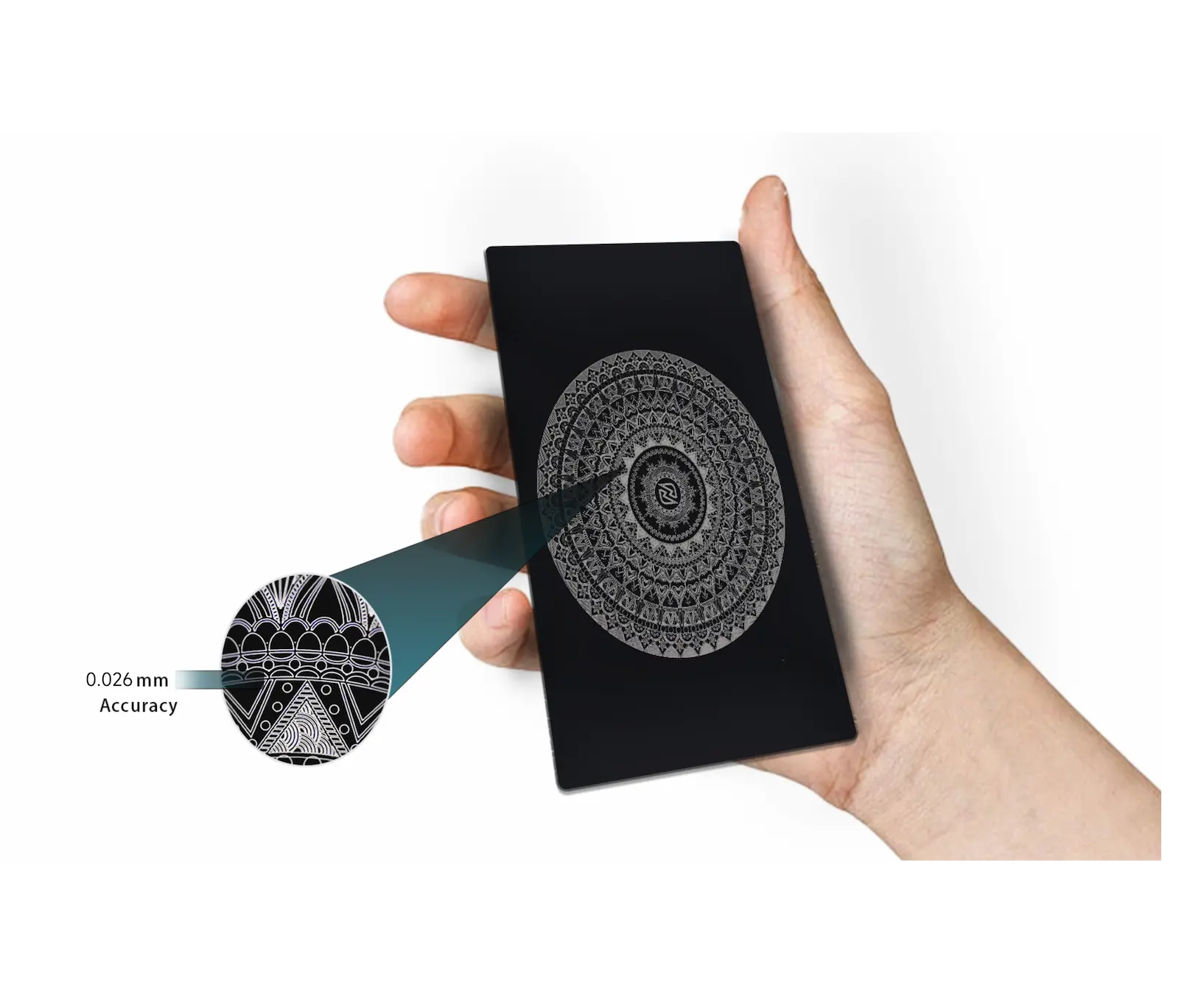

Featuring an ultra-fine 0.024mm focused spot on fiber, experience unparalleled clarity with Aurora Lite’s  HD resolution!
