American engineer John Edward Clayton invited a device called “boring box” to solve the problem of boredom when individuals wait too long. This box is an emotional design product which can change the mood of user, it also a decompression product which can relieve the pressure generated by the user in life.
If you often feel bored and stressed in life, then I believe you definitely need this magical box! The Laser Wizard brings you the creation called “The Box of Boredom”!

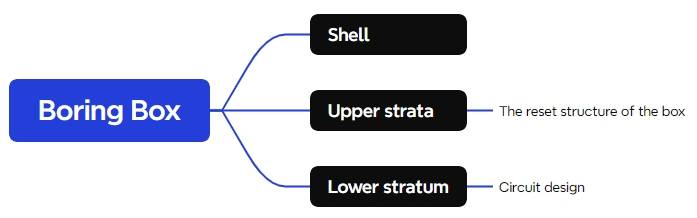

Ⅰ. Work Analysis
Ⅱ. Material List
Number
Name
Quantity
1
3mm Basswood Board
1
2
Rubber Band
2
3
Two AA Battery Boxes
2
4
Electrical Wire
1
5
Normally Closed Limit Switch
1
6
Toggle Switch
1
7
TT Motor
1
8
Dupont Wire
Several

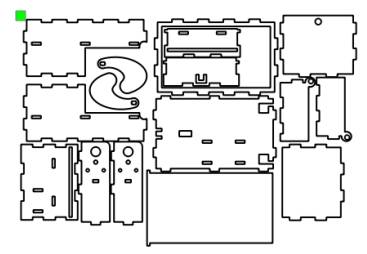

Ⅲ. Laser Modeling Drawing
You can go to the official Lei Yu Laser forum “Laser block open source community” after logging in, search for “boring box”, download this issue of Twitter drawings!
Ⅳ. Assembly tutorial

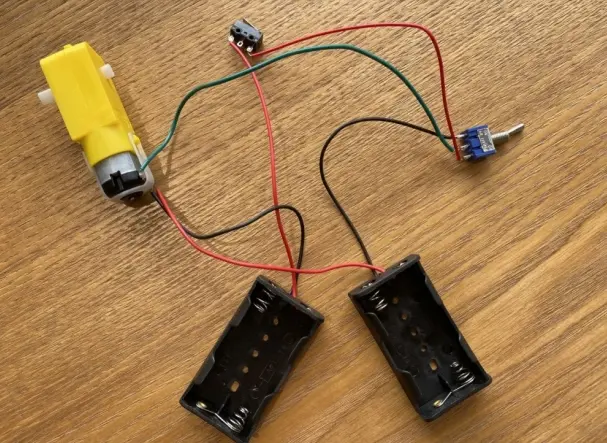

1. Line Connection
Connect the components according to the figure below.
2. Box Assembly
Ⅴ. Work Display
Ⅵ. Conclusion
This is how to design and make a boring box.
After the designers get the drawings, you can DIY the telescopic parts into your favorite cat paws or other animal paws shape!
Only after experiencing the effort can you harvest the results, get a box of your own, accompany yourself through boring times, and reduce the pressure in your daily life.
