Laser Marking - Ceramic Plates

Introduction

Let’s make your ceramic plates into one-of-a-kind masterpieces! Laser marking creates permanent logos and custom designs on ceramic plates quickly and without damaging this fragile material.

Ready to give your laser marking ceramic plates the attention they deserve? Check out the steps below and mark your way to success!

Machine Used

Aurora Lite 50W

See more details about this machine→

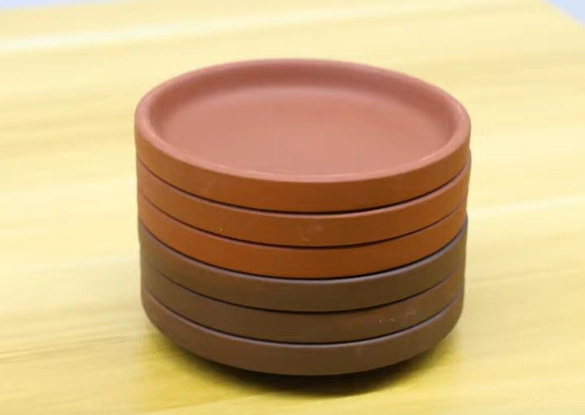

Material Needed

Ceramic Plates

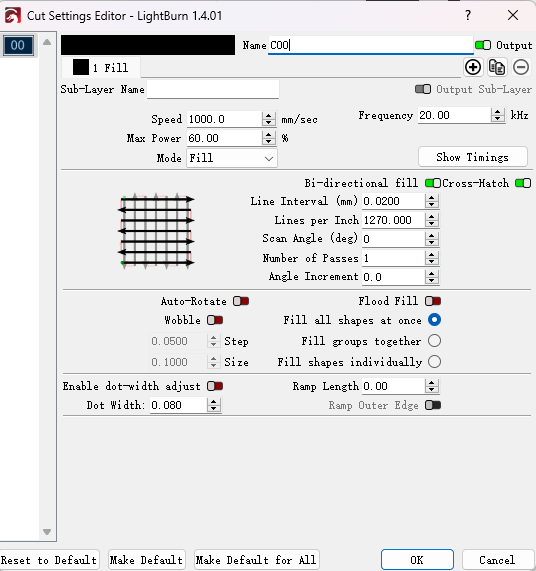

Settings

Laser Marking
Speed: 1000mm/s
Marking Power: 60%
Frequency: 20kHz
Line interval: 0.02

Check out!

Step 1: Place the ceramic plates

Put the ceramic plate on the laser bed. Since it is flat in the center, the plate will be well suited for laser marking.

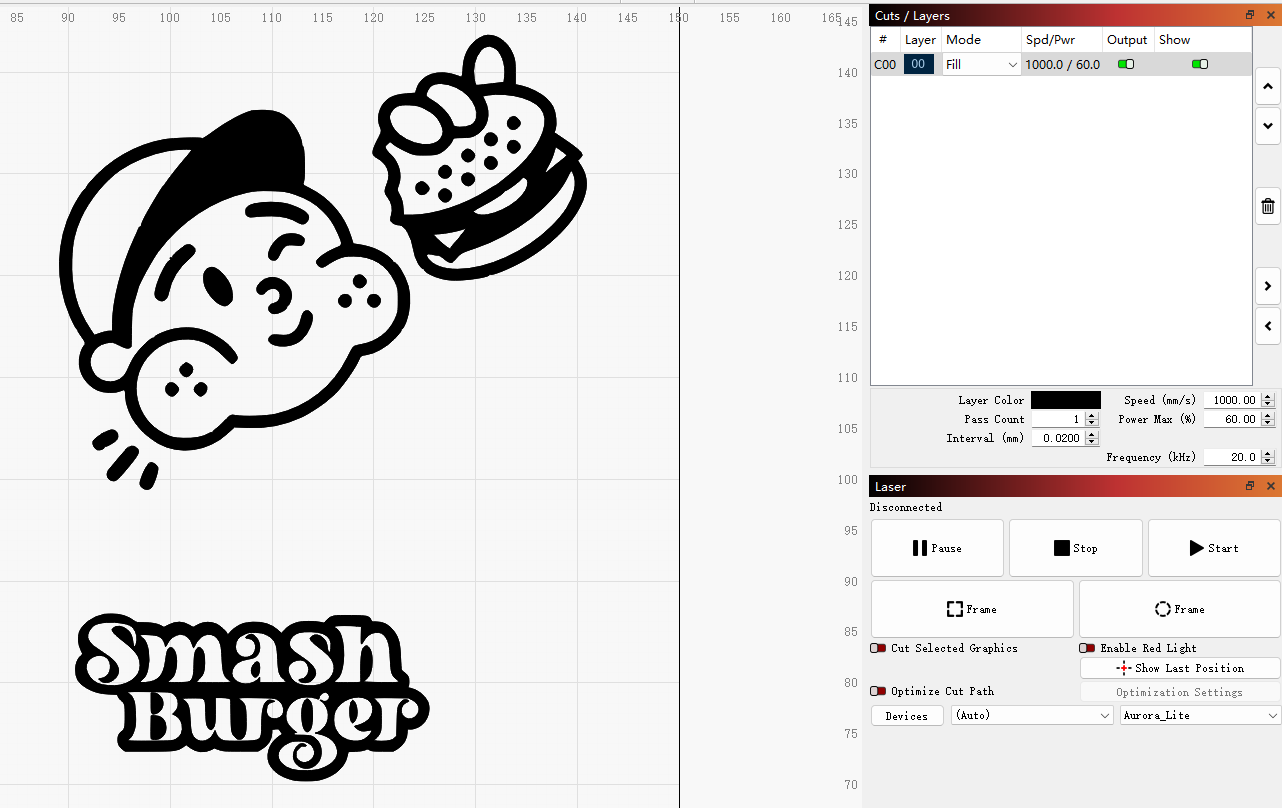

Step 2: Import laser marking file and check out

Load your design into LightBurn software, adjusting its size and position to fit your ceramic plates. Then make sure the laser marking parameters are set correctly.

Step 3: Don't miss the focus

Missing the focus is one of the biggest reasons for laser marking failure. So don’t forget to click the AF button for auto focus. Of course, manual focus is also effective.

Auto focus

Manual focus

Step 4: Ready to start laser marking

Press the frame button and check if the visual red light indicate the right area to be marked. The frame should be located in the middle of the plate. If not, move the pattern positions until they align.

After checking, close the laser door and begin Aurora Lite’s operation.

Step 5: Monitor the ceramic plates marking process

Stay near the machine throughout operation to monitor for any unusual sounds or alarms. This vigilance ensures safety during marking, as laser energy is potent. Avoid looking directly at the laser beam, even with protective measures in place.

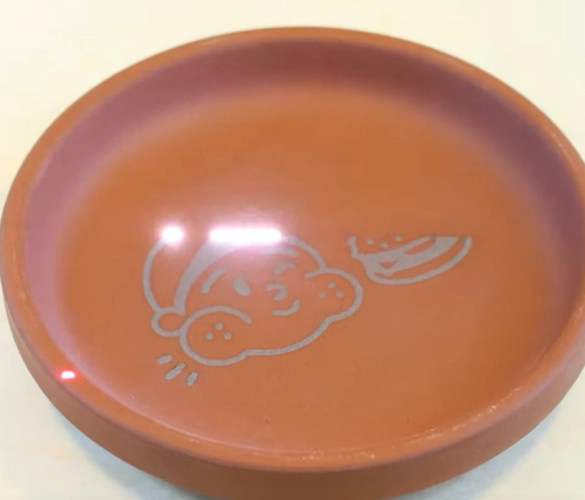

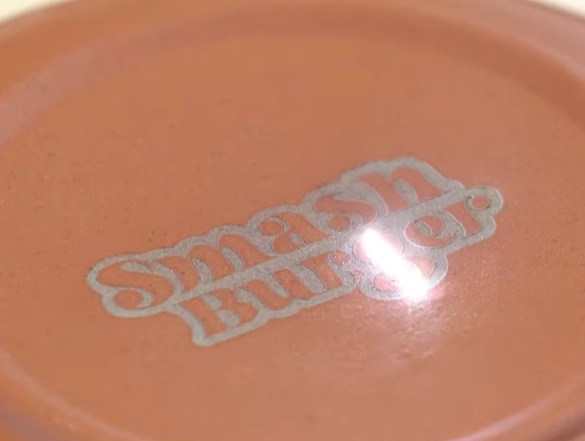

Step 6: Complete the task

Once laser marking is complete, carefully open the door and get your newly personalized ceramic plates. Laser marking does not produce toxic substances, and you can use the ceramic plate after a simple cleaning!

Come and Try!

Laser marking on ceramic plates adds a unique, personal touch while ensuring safety and durability. Whether you’re personalizing plates for a restaurant, a special event, or simply for your home, laser marking offers a safe, stylish, and functional way to enhance your ceramic plates!
